02 · Prepaid gas meter

STG16

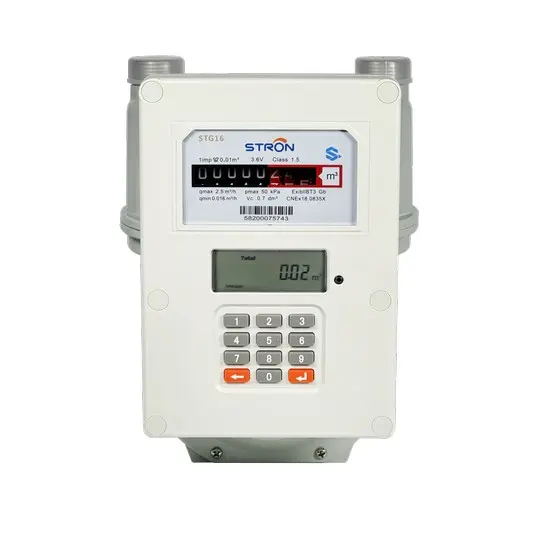

Prepaid Gas Meter

A self-contained prepaid gas meter with its own keypad and screen — the customer tops up by entering a code (STS token) directly on the unit, with no separate display needed.

Why clients choose it

• Tops up on the meter itself using a secure STS numeric code — simple for customers, no app required.
• Rugged aluminium die-cast case built for indoor or outdoor installation.
• 9-digit backlit LCD display shows the remaining balance clearly, day or night.
• Double reed-switch sensing detects magnetic tampering and protects against fraud.
• Battery life of 5+ years keeps maintenance visits to a minimum.
• Certified to international metering (OIML) and prepayment (STS/IEC 62055) standards.

Key specifications

Case material

Aluminium die-casting

Capacity range

G1.6 (2.5 m³/h max) or G2.5 (4 m³/h max)

Accuracy

±3% low flow, ±1.5% normal-to-max flow

Display

9-digit LCD with blue backlight

Prepayment method

STS-certified numeric token code

Battery life

5+ years

Working conditions

-10°C to +55°C, up to 1.0 bar

Protection rating

IP65

Standards

OIML R137-1 & 2, IEC 62055 (STS)
